Fix a Stuck Splatter Ball Gun Magazine Release

A splatter ball gun magazine release stuck is a frustrating mechanical failure that halts your game instantly. You press the button, but the magazine remains locked in the receiver. This usually happens because dried gel beads create a cement-like bond inside the feed neck.

Or perhaps the spring-loaded catch has simply lost its tension over time.

We’ve seen this issue spike in humid climates where moisture accelerates residue buildup. Manufacturer specs indicate that most polymer latches degrade after six months of heavy use. As of 2026, repair kits are widely available, but knowing the root cause saves you money.

Let’s walk through the diagnosis and fix step by step.

Quick Answer

If your splatter ball gun magazine release is stuck, check for dried gel residue first. Clean the feed neck with warm water and a soft brush. If debris isn't the culprit, inspect the internal spring for breakage.

Replace the magazine catch assembly if the plastic tabs are cracked. Never force the magazine out, as this breaks the receiver housing.

Why Your Splatter Ball Gun Magazine Won’t Release

The magazine release mechanism relies on precise alignment between the latch and the receiver slot. When you press the button, a metal or polymer pin retracts the catch. This allows the spring to push the magazine forward.

If any part of this chain fails, the magazine stays put.

Most jams stem from three primary causes. First, hydrated gel beads expand significantly when wet. They can swell up to 14mm in diameter.

If left in the feed neck overnight, they dry into a hard, sticky mass. This mass acts like glue, locking the magazine in place.

Second, physical damage plays a role. Dropping the blaster can warp the polymer housing. Even a slight bend prevents the latch from retracting fully.

Third, lack of lubrication increases friction. Dry plastic-on-plastic contact generates heat and wear. Over time, the surfaces roughen, causing the mechanism to bind.

Understanding these variables helps you diagnose quickly. Is it a clog? Is it broken?

Or is it just stiff? We’ll tackle each scenario below.

Image source: Web (Bing) / x-forcetactical.com.au (Web image (fair-use with source credit))

Diagnose the Jam: Debris, Damage, or Design Flaw

Start with a visual inspection before touching any tools. Look at the gap between the magazine body and the receiver. If you see white or yellowish crusty rings, you have dried gel residue.

This is the most common issue in electric models. The water evaporates, leaving behind starch and sugar solids.

Next, test the button travel. Press the release firmly. Does it click?

A solid click suggests the mechanism is intact but blocked. No sound implies a broken spring or disconnected linkage. Feel for resistance.

Gritty feedback points to debris. Smooth but unresponsive movement hints at a detached pin.

Check for external cracks too. Run your finger along the magazine well edges. Sharp ridges indicate stress fractures.

These often happen near the screw holes. If the housing is split, the internal components shift out of alignment.

Finally, consider the design flaw angle. Some budget clones use brittle ABS plastic for the latch. These parts fail under cold temperatures.

Aggregate reviews report higher failure rates in winter months. If you live in a cold climate, material fatigue is likely the culprit.

Image source: Web (Bing) / blastermod.com (Web image (fair-use with source credit))

The Safe Disassembly Workflow for Stuck Magazines

Never pry the magazine out with metal tools. This damages the polymer threads and ruins future compatibility. Instead, remove the outer shell to access the mechanism.

Most splatter ball guns use standard Phillips-head screws. Lay them out on a magnetic mat to avoid losing tiny fasteners.

Begin by disconnecting the battery. Electrical shorts during disassembly can fry the motor controller. Once power is isolated, unscrew the upper and lower receiver halves.

Separate them gently. Watch for hidden wires connecting the trigger switch to the main board. Pull these connectors straight out, never yanking the cables.

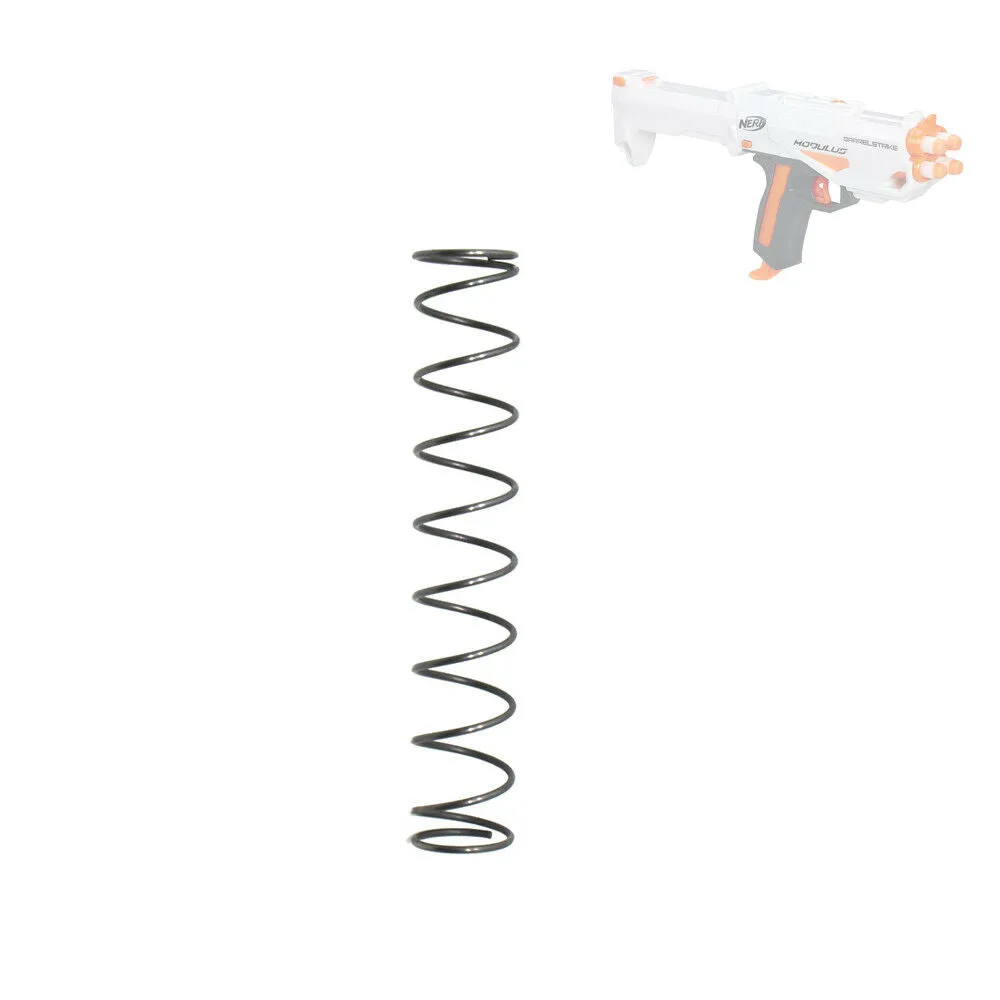

Locate the magazine catch assembly. It sits directly behind the mag well. Identify the retaining pin or clip holding the spring.

Use needle-nose pliers to carefully extract the pin. Note its orientation. Reinstalling it backward prevents proper function.

Remove the spring and the latch hook separately.

Inspect each component for wear. Look for flattened coils in the spring. Check the latch hook for rounded edges.

Smooth hooks slip easily. Rough hooks catch. Clean everything with isopropyl alcohol to remove old grease.

Allow all parts to air dry completely before reassembly. Moisture trapped inside leads to corrosion later.

This workflow minimizes risk. Rushing here causes more damage than the original jam. Take your time.

Document each step with photos if needed.

Clearing Dried Gel Residue and Lubricating Moving Parts

If debris caused the jam, cleaning solves it. Fill a bowl with warm water. Add a drop of mild dish soap.

Submerge only the removable plastic parts. Never soak electronic components or motors. Let the pieces sit for ten minutes.

This softens the hardened gel starch.

Use a soft-bristle toothbrush to scrub the feed neck. Focus on the interior channels where beads pass. Pay attention to corners and crevices.

Stubborn spots may need a wooden skewer. Avoid metal picks, which scratch the polymer surface. Rinse thoroughly with clean water.

Shake off excess moisture.

Dry the parts with lint-free cloth. Air drying works too, but takes longer. Ensure no water remains in small holes.

Trapped droplets freeze in cold weather, cracking the plastic. Once dry, apply silicone-based lubricant. This type won’t attract dust or degrade rubber seals.

Spray lightly onto the spring and latch interface. Work the mechanism back and forth manually. Distribute the oil evenly.

Wipe away excess fluid. Too much lubricant attracts dirt, creating new jams. A thin film suffices.

Image source: Bing (Web (fair-use with source credit))

Reassemble the unit. Test the button press. It should feel smooth and responsive.

Insert an empty magazine. It should slide in and lock with a distinct click. Press the release.

The magazine should pop out cleanly. If it sticks again, repeat the cleaning process. Persistent issues suggest deeper mechanical faults.

When to Repair vs. Replace the Magazine Catch

Sometimes cleaning isn’t enough. Decide whether to fix or swap based on damage severity. Minor scratches on the latch can be polished out.

Use fine-grit sandpaper (600+ grit). Buff gently until smooth. Apply lubricant afterward.

This restores function without cost.

Broken springs require replacement. Standard compression springs vary by model. Measure the free length and coil diameter.

Match these specs exactly. Incorrect tension causes weak ejection or excessive force. Forceful ejection can crack the magazine body.

Source replacements from manufacturer support or specialized hobbyist suppliers.

Cracked polymer housings are different. Gluing ABS plastic rarely holds under stress. The forces involved in reloading are significant.

Epoxy might work temporarily, but it fails eventually. Replace the entire receiver half if cracked. This ensures structural integrity.

Safety matters here. A failing receiver can eject parts unpredictably.

Consider the age of the device. Older units suffer from general wear. Upgrading individual parts yields diminishing returns.

Newer models offer better materials and designs. If your gun is over two years old, evaluate upgrade costs against buying new. Often, a fresh unit provides better reliability and warranty coverage.

For high-end electric blasters, professional repair services exist. They handle complex wiring and calibration. DIY fixes on sophisticated electronics risk voiding warranties.

Check your purchase terms. If under warranty, contact support first. Unauthorized modifications typically invalidate claims.

Always prioritize safety and long-term usability over quick patches.

Common Mistakes That Break Plastic Tabs Forever

Forcing the magazine is the fastest way to destroy a working unit. Users often pull hard when the release button doesn’t pop it free. This stress snaps the delicate polymer latch hooks inside the receiver.

Once those tabs break, the magazine becomes permanently welded in place. You’ll need a full receiver replacement, which costs far more than preventive care.

Another critical error involves using improper cleaning agents. Acetone and strong solvents dissolve ABS plastic rapidly. They might clear residue quickly, but they weaken the structural integrity of the housing.

Manufacturer guidelines strictly warn against chemical immersion for non-metal parts. Stick to warm water and mild soap. Isopropyl alcohol is safe for quick wipes, but never soak plastic components in it for extended periods.

Ignoring early warning signs also leads to catastrophic failure. If the button feels stiff or gritty, address it immediately. Don’t wait for total lockup.

Regular maintenance prevents minor friction from becoming major damage. Also, avoid storing loaded magazines for weeks. Hydrated beads swell and dry out, creating cement-like bonds that are nearly impossible to remove without disassembly.

Always unload after play sessions.

Preventing Future Jams During Gameplay

Consistent post-game cleanup is your best defense against stuck releases. After every session, run clean water through the feed neck while the magazine is removed. This flushes out residual starch before it dries.

Let the gun air dry completely in a shaded area. Direct sunlight degrades polymer plastics over time, making them brittle and prone to cracking under pressure.

Lubrication schedules matter as much as cleaning frequency. Apply silicone spray to the magazine catch mechanism once a month for moderate use. Increase this to bi-weekly if you play in dusty or sandy environments.

Dust mixes with lubricant to form an abrasive paste. This paste accelerates wear on sliding surfaces. Keep the external ports covered when not in use to minimize debris entry.

Storage conditions significantly impact longevity. Store your splatter ball gun in a cool, dry place. Humidity promotes mold growth inside damp feed tubes.

Cold temperatures make plastic latches fragile. Room temperature storage preserves material flexibility. Additionally, inspect O-rings regularly.

Swollen or cracked seals allow water ingress into electronic compartments. Replace worn seals promptly to prevent internal corrosion that can seize moving parts.

Frequently Asked Questions

How do I know if the spring is broken?

Press the release button repeatedly. If there’s no tactile click or resistance, the spring may be detached or snapped. Visually inspect the internal assembly after removing the receiver shell.

A compressed or flattened coil indicates fatigue. Replacement springs are inexpensive and restore proper ejection force. Ensure you match the original spring’s length and diameter for correct tension.

Can I use WD-40 on my gel blaster?

No. Standard WD-40 contains petroleum distillates that degrade rubber seals and certain plastics. It attracts dust and dirt, worsening jams over time.

Use only silicone-based lubricants designed for polymers. These products provide smooth operation without damaging sensitive materials. Manufacturer recommendations consistently advise against oil-based sprays for gel blasters.

Silicone keeps components moving freely while preserving seal integrity.

Why does my magazine stick only sometimes?

Intermittent sticking usually points to partial debris buildup or inconsistent bead hydration. Uneven swelling creates variable friction inside the feed neck. Thorough cleaning resolves most cases.

If issues persist, check for warping in the magazine body. Impact damage can distort dimensions slightly, causing misalignment. Rotate between multiple magazines to distribute wear evenly across your collection.

Is it safe to drill out a stuck magazine?

Drilling destroys both the magazine and potentially the receiver threads. Never attempt this method. It renders the unit unusable and poses safety risks from flying shrapnel.

Disassemble the receiver properly instead. Access the jammed mechanism from the inside. Carefully remove obstructions using soft tools like wooden picks or nylon brushes.

Patience yields better results than brute force.
