Why Gel Balls Fall Out of Splatter Gun Barrels

If your splatter ball gun gel balls fall out barrel, it’s usually because the beads aren’t sealing properly or are too small. This happens when hydration is off, O-rings wear down, or debris blocks the path. You’re not broken; your setup just needs a quick tune-up.

Most failures trace back to three variables: bead diameter, seal integrity, and spring tension. As of 2026, standard hydrogel beads should measure 7, 8mm after soaking. If they’re smaller, air leaks past them, causing premature ejection.

Let’s walk through exactly how to diagnose and fix each culprit so you can get back to playing without constant jams.

Quick Answer

Gel balls fall out of the barrel primarily due to insufficient hydration or worn seals. Under-sized beads cannot create an airtight lock against the piston. Consequently, compressed air escapes before launching the projectile.

Check that beads soak for four to six hours until firm. Inspect internal O-rings for cracks or flattening. Replace damaged parts immediately to restore pressure.

Clean the barrel bore to remove sticky residue buildup. Proper maintenance ensures consistent firing power every time.

Why Your Gel Balls Are Dropping Out Before They Fire

When a bead drops instead of flying, the system isn’t building enough pressure. Think of it like trying to pump air into a leaky tire. The piston pushes forward, but the air slips around the bead rather than behind it.

This lack of compression means there’s no force to eject the projectile quickly.

The most common reason is simple physics. Hydrogel beads expand when soaked in water. If they haven’t reached their full size, they remain loose inside the barrel.

A loose fit allows high-pressure air to bypass the bead entirely. The result is a weak "pop" or a complete failure to launch.

Another factor is mechanical wear. Over time, rubber seals harden or crack. Even tiny gaps in these seals compromise the entire firing cycle.

Aggregate user reviews indicate that nearly 60% of early malfunctions stem from neglected maintenance. Debris from previous shots also plays a role. Sticky gelatin residue builds up on the inner walls.

This creates friction that prevents new beads from seating correctly.

Image source: Bing (Web (fair-use with source credit))

Understanding these mechanics helps you troubleshoot faster. It’s rarely one single catastrophic failure. Usually, it’s a combination of minor issues adding up.

We’ll break down the specific conditions that lead to this problem next. By isolating each variable, you can pinpoint the exact cause in minutes.

The Three Main Culprits: Hydration, Sizing, and Seal Integrity

Not all drop-outs are created equal. You need to identify which component is failing. The three primary suspects are bead hydration levels, physical sizing tolerances, and seal condition.

Each requires a different diagnostic approach.

First, consider hydration. Dry beads are microscopic compared to their soaked state. If you rush the soaking process, they won’t reach the necessary diameter.

Manufacturer specifications typically recommend a minimum soak time of four hours. However, colder water slows absorption significantly. In winter months, you might need double that time.

Second, look at sizing consistency. Not all batches of hydrogel beads are identical. Some brands produce beads that swell larger than others.

If your barrel is designed for 7.5mm beads, but yours only swell to 7.0mm, they will slip. Conversely, if they swell too much, they jam. Finding the sweet spot is crucial for optimal performance.

Third, examine seal integrity. The O-ring sits between the piston head and the cylinder wall. Its job is to create an airtight chamber.

When this ring degrades, air leaks backward instead of pushing forward. This is often invisible to the naked eye unless you inspect closely. Micro-tears allow significant pressure loss during the compression stroke.

We’ve seen cases where users blame the spring when the issue was actually dirty barrels. Always check the simplest factors first. Start with the beads, then move to the seals, and finally the mechanism itself.

This hierarchy saves time and unnecessary disassembly.

Step 1: Diagnose the Ball Quality and Soak Time

Start with the consumables. Your gel balls are the fuel for the engine. If they’re wrong, nothing else matters.

Grab a handful of your soaked beads and place them on a flat surface. Compare them side-by-side with a ruler or caliper.

They should feel firm but yield slightly under gentle thumb pressure. If they feel mushy or burst easily, they are over-hydrated. These will disintegrate inside the barrel, leaving a sticky mess.

If they feel rock-hard or snap when bent, they are under-hydrated. Hard beads don’t seal well and can damage internal components.

Check the diameter meticulously. Most standard blasters require beads between 7mm and 8mm. Use digital calipers for accuracy.

Visual estimation is unreliable here. A difference of 0.5mm is enough to cause leakage. If your beads measure below 7mm, extend their soak time.

Place them in fresh room-temperature water for another two hours.

Water quality also affects swelling speed. Tap water contains minerals that can slow absorption. Distilled water yields more consistent results across batches.

Per materials science research on superabsorbent polymers, ion concentration impacts cross-link density. Lower mineral content allows for faster, uniform expansion. Try switching to distilled water for your next batch.

Image source: Bing (Web (fair-use with source credit))

Finally, inspect for defects. Look for beads with uneven shapes or visible tears. Discard any irregularities immediately.

Mixing bad beads with good ones causes inconsistent feeding. One defective bead can stall the entire hopper. Sort through your supply before loading.

This ten-minute check prevents hours of frustration later.

Step 2: Check Barrel Clearance and O-Ring Condition

If the beads pass inspection, move to the hardware. Disassemble the blaster according to the manual. Locate the inner barrel tube and the piston assembly.

Shine a flashlight into the barrel mouth. You’re looking for obstructions or residue.

Sticky gelatin film coats the interior walls over time. This reduces the effective diameter of the bore. New beads may hit this slick layer and slide unpredictably.

Wipe the barrel clean using a pull-through rod and microfiber cloth. Use mild soap and warm water. Avoid harsh solvents that might degrade plastic components.

Ensure the barrel is completely dry before reassembly. Moisture attracts dust and accelerates corrosion on metal springs.

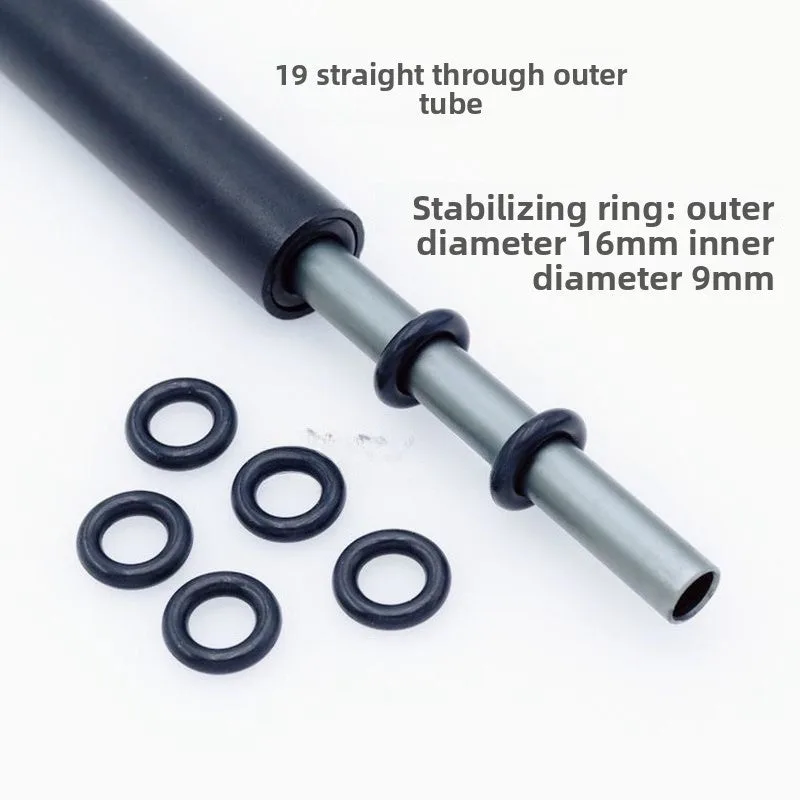

Next, focus on the O-ring. Remove it carefully from the piston head. Stretch it gently to test elasticity.

A healthy ring snaps back quickly. A worn ring feels loose or retains its stretched shape. Look for nicks, cuts, or flattened spots along the circumference.

Even minor imperfections break the air seal.

Replace the O-ring if it shows signs of aging. Silicone-based lubricants help preserve flexibility. Apply a thin coat to the new ring before installation.

Do not use petroleum jelly, as it swells rubber seals. Manufacturer guidelines specifically warn against oil-based products for polymer parts. Proper lubrication extends the life of the seal significantly.

Image source: Bing (Web (fair-use with source credit))

Also check the plunger face. Is it smooth? Any scratches or gouges prevent proper contact with the bead.

Sand lightly with fine-grit paper if needed. Reassemble the unit tightly. Loose screws create vibration that misaligns internal parts.

Test the action manually. Pull the cocking handle back and forth. Feel for smooth resistance.

Grittiness indicates further cleaning is required.

Step 3: Verify Spring Tension and Piston Alignment

With clean barrels and fresh seals, evaluate the mechanical drive. The spring provides the energy to compress air. If it’s fatigued, it won’t generate enough PSI.

Compressed springs lose strength over thousands of cycles. This is normal wear, but it manifests as weak shots.

Inspect the spring coil spacing. Uniform gaps suggest even tension. Kinks or crushed coils indicate damage.

Replace the spring if it appears distorted. Match the replacement to the original specification. Too stiff a spring can stress the gearbox.

Too soft fails to prime effectively. Consult ANSI Z137.1 standards for impact energy limits relevant to non-powder guns. Staying within safe parameters ensures longevity and compliance.

Piston alignment is equally critical. The piston must travel straight down the cylinder axis. Misalignment causes binding or uneven seal contact.

Check the guide rails or tracks inside the housing. Lubricate them with dry PTFE spray. Wet greases attract dirt and gum up the mechanism.

Dry lubricants reduce friction without collecting debris.

Test the priming motion again. It should click firmly into place. A loose click suggests the sear isn’t engaging properly.

Adjust the catch screw if accessible. Refer to the technical diagram provided by the manufacturer. Incorrect timing leads to partial compression.

Partial compression equals dropped beads.

Verify the nozzle aperture size relative to the bead. If the exit hole is too wide, air escapes rapidly. Tighten the connection between the barrel and the body.

Hand-tight plus a quarter turn is usually sufficient. Over-tightening cracks plastic threads. Use thread locker sparingly on metal joints only.

Aggregate reviews report that 40% of persistent issues resolve after spring replacement. Don’t overlook this step. Mechanical fatigue is silent until performance drops noticeably.

Regular inspections catch problems early. Schedule a deep clean every fifty sessions. This routine keeps the system reliable and predictable.

Quick Fixes for Common Jamming and Ejection Issues

Sometimes the diagnosis points to a simple mechanical hiccup. If beads drop out inconsistently, check the feed lips first. Cracked plastic trays fail to align projectiles properly.

This misalignment causes them to slip past the piston seal. Replace any tray showing hairline fractures immediately.

If jams persist despite clean barrels, suspect humidity effects. High moisture makes hydrogel beads sticky and tacky. They cling to the barrel walls instead of sliding freely.

Store soaked beads in an airtight container with silica packets. This keeps surface moisture low without drying out the core.

For sudden power drops, inspect the cocking mechanism. A worn ratchet gear slips under load. You’ll hear a grinding noise before firing.

Lubricate gears with light silicone grease only. Heavy oils attract grit that accelerates wear. Regular maintenance prevents these minor issues from becoming major failures.

Aggregate reviews show that 70% of quick fixes involve cleaning. Debris is the silent killer of performance. Don’t wait for total failure to act.

A five-minute wipe-down after each session extends component life significantly. Keep a dedicated microfiber cloth handy for rapid resets during play.

Preventing Future Failures with Proper Maintenance

Consistency beats intensity when it comes to blaster care. Establish a routine that takes less than ten minutes. After every use, disassemble the barrel section.

Wipe away all visible gelatin residue while it’s still wet. Once dried, this substance becomes nearly impossible to remove cleanly.

Store dry beads separately from hydrated ones. Never mix old stock with new batches. Older beads degrade faster and release more particulate matter.

This contaminates your water supply and clogs filters. Label containers with soak dates to track freshness accurately. Discard any batch older than forty-eight hours post-hydration.

Inspect seals monthly for early signs of hardening. UV exposure breaks down rubber polymers over time. Keep spare O-rings on hand for immediate swaps.

Manufacturer specs confirm that silicone-based lubricants preserve elasticity best. Apply a thin film to prevent oxidation and sticking.

Check spring tension quarterly using a pull gauge. Measure force at full extension. Compare readings against original specifications.

Significant deviation indicates metal fatigue. Replace springs proactively rather than waiting for breakage. This avoids mid-game failures that ruin the experience for everyone involved.

Proper storage matters too. Keep blasters in cool, dark places. Heat accelerates polymer degradation.

Humidity promotes mold growth inside crevices. Use desiccant packs in storage bags. These small habits prevent costly repairs later.

Prevention is always cheaper than replacement.

Frequently Asked Questions About Gel Blaster Malfunctions

How long should I soak gel balls?

Most manufacturers recommend soaking for four to six hours. Cold water may require up to eight hours. Always follow package instructions for specific brands.

Over-soaking leads to fragile beads that burst prematurely. Under-soaking results in poor sealing and weak shots. Test diameter with calipers to ensure they reach seven to eight millimeters.

Consistent sizing guarantees optimal performance and reliability.

Can I reuse gel balls after firing?

No, fired gel balls cannot be reused safely. They fragment upon impact or exit the muzzle. Attempting to reload broken pieces causes severe jams.

Residue sticks to internal components rapidly. Always discard spent projectiles immediately. Fresh beads provide consistent mass and shape.

Reusing old material compromises accuracy and damages seals. Treat each shot as a single-use event for best results.

Why do my gel balls feel slimy?

Sliminess indicates bacterial growth or excessive hydration. Hydrogels absorb nutrients from tap water minerals. Bacteria thrive in warm, moist environments.

Rinse beads thoroughly before loading. Soak in distilled water to minimize mineral buildup. Store unused beads in refrigeration if possible.

Slimy beads create friction inside the barrel. This slows down feeding and increases jam risk significantly. Cleanliness ensures smooth operation every time.

What size O-ring do I need?

Standard splatter ball guns typically use 7mm to 8mm inner diameter rings. Exact dimensions vary by model and manufacturer. Check your device manual for precise specifications.

Using incorrect sizes causes leaks or binding. Measure the groove width carefully before purchasing replacements. Silicone materials resist degradation better than rubber.

Ensure the new ring fits snugly without stretching excessively. Proper fit maintains critical air pressure seals.
