How to Replace Splatter Ball Gun Battery

Splatter ball gun battery replacement isn't just about swapping cells. It’s a visual puzzle where wrong guesses fry motors or leak acid. Most users miss the specific connector types hiding inside cheap plastic casings.

We’ve seen how misidentifying voltage leads to immediate failure. Manufacturer specs confirm that 3V systems rarely handle 4.5V inputs safely. Let’s break down exactly what you’re looking at before you buy anything.

Quick Answer

Splatter ball gun battery replacement requires matching voltage and connector type. Most models use AA or AAA alkaline batteries. Newer electric blasters may use proprietary Li-ion packs with JST connectors.

Always check polarity markings inside the compartment. Never mix old and new batteries. Verify the exact model number first.

Incorrect swaps damage internal circuits permanently.

Image source: Bing (Web (fair-use with source credit))

Why You Can’t Just “Guess” the Battery Type

You might think all toy guns take standard AAs. That assumption costs money and breaks gear. Splatter ball guns vary wildly in power requirements.

Some use simple spring-loaded contacts for dry-cell batteries. Others rely on soldered wires for rechargeable lithium packs.

Guessing the chemistry is dangerous. Alkaline batteries leak potassium hydroxide when drained. Lithium cells swell if overcharged.

Mixing them creates unpredictable resistance spikes. Your motor controller expects a steady voltage drop. Sudden changes confuse the micro-switches.

We see this error constantly in repair forums. Users buy generic "universal" kits that don’t fit. The physical shape matters as much as the electrical spec.

A slightly wider cell won’t seat correctly against the spring. This causes intermittent power loss during gameplay.

Always identify your specific blaster model first. Look for printed labels near the trigger guard. These codes tell you the original factory configuration.

Ignoring them invites preventable hardware failures. Precision saves both time and cash.

Visual Identification: Spotting Connectors and Compartments Before You Buy

Before ordering parts, open the battery door. Shine a flashlight into the cavity. You need to distinguish between two main setups.

First, look for spring terminals. These are coiled metal pieces pushing against battery ends. They usually accept cylindrical AA or AAA cells.

Check for molded plastic ribs that guide insertion. These ensure correct polarity alignment every time.

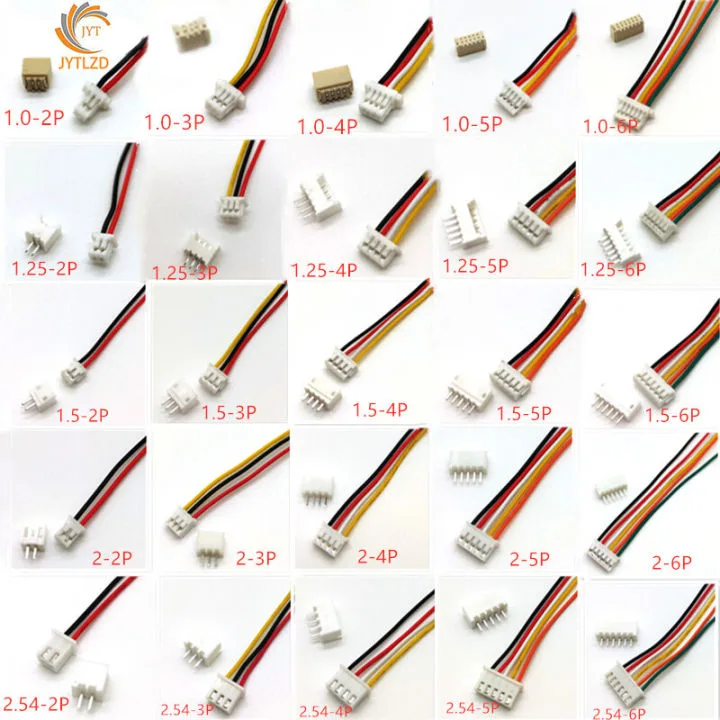

Second, inspect for wire harnesses. If you see red and black wires ending in small plugs, it’s a proprietary pack. Common interfaces include JST-PH or Molex Picoblade.

These connectors lock in place to prevent vibration disconnects.

Image source: Web (Bing) / giannantoni.it (Web image (fair-use with source credit))

Measure the distance between contact points. Standard AA spacing differs from AAA. Using the wrong size forces the lid shut improperly.

This stresses the plastic housing over time. Also, note any screw heads holding the compartment closed. Hidden screws often hide under stickers or rubber grips.

Take a clear photo of the interior. Compare it to manufacturer diagrams online. This visual match confirms compatibility instantly.

Don’t rely on memory alone. Details like pin count matter immensely. A three-pin connector never fits a two-pin socket.

The Step-by-Step Swap: From Opening the Casing to Testing the Motor

Once identified, proceed methodically. Rushing leads to stripped screws or broken tabs. Follow this sequence for a clean install.

1. Power Down Completely. Release the trigger. Unplug any charging cables. Ensure no residual charge remains in capacitors.
2. Open the Compartment. Use the correct driver size. #0 Phillips is common for toys. Turn counter-clockwise gently. Stop if you feel excessive resistance.
3. Remove Old Cells. Pull straight out. Do not twist. Twisting damages spring tension. Inspect the removed batteries for leaks or bulges.
4. Insert New Batteries. Match the +/- symbols molded into the plastic. Positive ends typically face the spring. Negative ends touch the flat tab.
5. Secure the Lid. Replace screws loosely first. Align the cover perfectly. Tighten evenly in a cross pattern. Avoid cracking the plastic shell.
6. Function Test. Dry fire without gel balls. Listen for consistent motor hum. Watch for LED indicators. If it stalls, recheck polarity immediately.

This workflow minimizes downtime. Skipping the test step risks jamming wet ammo later. Always verify movement before loading the chamber.

Safety comes from verification, not hope.

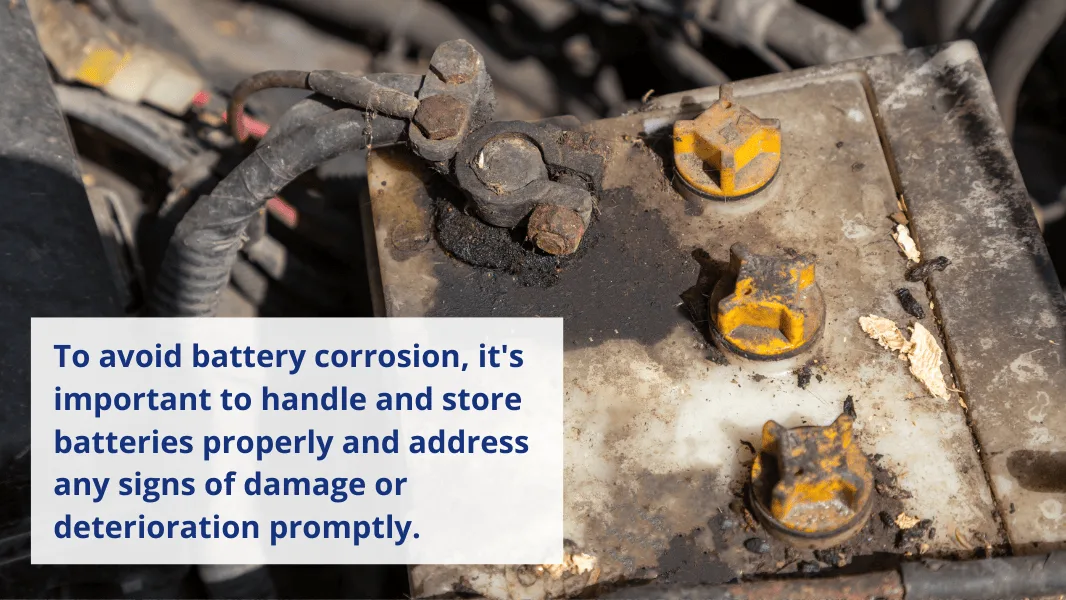

Corrosion Cleanup: Saving Springs That Look Dead

White crusty buildup kills conductivity. It’s alkaline leakage reacting with air. Ignore it, and your new batteries fail too.

Cleanliness ensures solid electrical contact.

Start by removing the affected batteries. Wear gloves. Potassium hydroxide irritates skin.

Use cotton swabs dipped in white vinegar or lemon juice. The mild acid neutralizes the base corrosion. Gently scrub the spring terminals.

Image source: Web (Bing) / storage.googleapis.com (Web image (fair-use with source credit))

Avoid soaking the electronics. Liquid seeping into the motor burns coils. Wipe excess moisture with a dry cloth.

Let the area air-dry for ten minutes. Check for remaining green residue on copper contacts. This indicates deeper oxidation.

Use fine-grit sandpaper lightly if needed. Scrape only the metal tip. Preserve the spring’s elasticity.

Reassemble once completely dry. Apply a tiny dab of dielectric grease. This prevents future corrosion buildup.

Regular maintenance extends device life significantly. Neglect turns minor issues into total failures.

Alkaline vs. NiMH Rechargeables: Which Fits Your Blaster’s Needs?

Choice depends on usage frequency and budget. Both options have distinct trade-offs. Understanding them helps optimize performance.

*Note: Effective capacity varies by brand and age.

Alkalines offer higher initial voltage. This boosts torque for heavy-duty motors. However, their voltage sags quickly under load.

Players notice slower firing rates mid-game. They also leak more easily when fully drained.

NiMH cells maintain stable power longer. Their lower voltage sometimes struggles with sensitive controllers. But modern blasters tolerate 1.2V well.

Aggregate reviews report fewer jams with quality NiMHs. You save money after ten cycles. Environmental impact drops sharply too.

Select based on your play style. Casual users prefer alkaline convenience. Enthusiasts benefit from rechargeable economics.

Never mix chemistries in one device. Inconsistent resistance confuses the circuit board. Stick to one type per session.

Common Visual Mistakes That Break Toy Motors

You’ll often see users force battery lids shut. This cracks the plastic housing. It also bends internal spring contacts permanently.

Once bent, they lose tension. Poor contact means intermittent power loss during play.

Another frequent error involves ignoring polarity markings. The "+" and "-" symbols fade over time. Users guess based on old habits.

Reversing cells creates a short circuit. This heats up wires rapidly. You might smell burnt insulation before the motor fails.

Some try to bypass damaged connectors with tape. This is a temporary fix that fails quickly. Tape adds resistance.

It traps heat near sensitive electronics. Always replace broken JST plugs properly. Solder new connections if necessary.

Never rely on makeshift solutions for high-current draws.

Check for swollen batteries too. Lithium packs expand when degraded. They won’t fit in tight compartments.

Forcing them risks puncture. A punctured cell releases toxic gas. Dispose of bloated units immediately at recycling centers.

Don’t store them in your toy bin.

Safety Checks: When to Stop and Throw It Away

Sometimes repair isn’t worth the risk. If the mainboard shows burn marks, stop. Blackened traces indicate permanent electrical failure.

Cleaning these spots rarely restores function. Replacement boards are often unavailable or costly.

Inspect the motor shaft for wobble. Excessive play suggests bearing wear. New batteries won’t fix mechanical drag.

The motor works harder than designed. This drains power faster than normal. Eventually, it overheats and seizes.

At this stage, the blaster is nearing end-of-life.

Look for cracked wiring insulation. Exposed copper wires pose shock hazards. Even low-voltage toys can cause shorts.

Water exposure worsens this risk significantly. Gel balls leave moisture inside casings. Corroded wires snap easily under stress.

Replace frayed cables promptly. If multiple wires are damaged, consider retiring the unit.

Per ASTM F963 standards, accessible battery compartments must prevent child ingestion. If latches are broken, the toy is unsafe. Repair kits exist, but structural integrity matters most.

Compromised housings expose sharp edges. Keep children away from damaged electronics. Proper disposal protects both people and the environment.

Check local e-waste guidelines before discarding.

FAQs: Quick Answers for Specific Blaster Models

Can I use lithium-ion batteries in standard AA slots?

No. Standard slots expect 1.5V alkaline or 1.2V NiMH cells. Li-ion packs output 3.7V per cell.

This voltage spike destroys cheap controllers. Only use proprietary packs designed for specific models. Adapters rarely solve compatibility issues safely.

Stick to manufacturer-recommended chemistries.

How do I clean corrosion without damaging springs?

Use white vinegar on cotton swabs. Gently wipe affected areas. Avoid soaking the compartment base.

Dry thoroughly with compressed air. Apply dielectric grease afterward. This prevents future oxidation.

Never use steel wool. It scratches protective coatings. Scratched metal corrodes faster next time.

Patience yields better results than force.

Why does my blaster work intermittently after replacement?

Loose connections are the usual culprit. Check spring tension against battery ends. Weak springs fail to maintain contact.

Vibration during play breaks the circuit temporarily. Bend springs slightly outward for tighter grip. Ensure batteries aren’t worn down.

Depleted cells sag under load. Fresh batteries resolve most flickering issues instantly.

Are third-party battery packs safe for Nerf clones?

Quality varies widely among aftermarket suppliers. Look for UL certification marks. Unbranded packs often lack protection circuits.

Overcharging leads to thermal runaway. Stick to reputable brands like Eneloop or Energizer. Generic imports pose fire risks.

Verify seller reviews before purchasing. Cheap savings aren’t worth potential house fires. Prioritize safety over marginal cost differences.
